Product Track-It Pressure
Monarch Instrument

Track-It Pressure

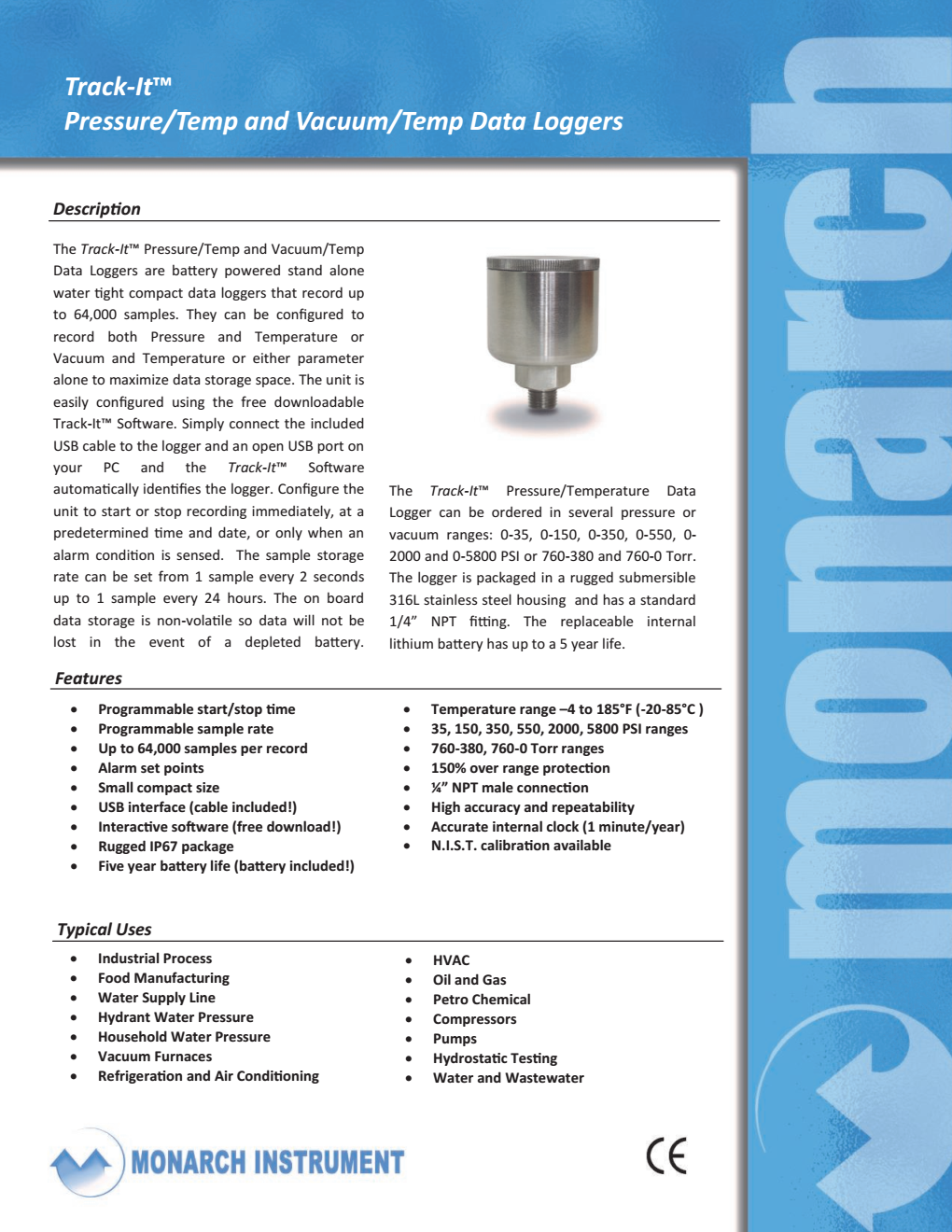

The Track-It™ Pressure/Temp and Vacuum/Temp Data Loggers are batery powered stand alone water tght compact data loggers that record up to 64,000 samples. They can be confgured to record both Pressure and Temperature or Vacuum and Temperature or either parameter alone to maximize data storage space. The unit is easily confgured using the free downloadable Track-It™ Sofware. Simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ Sofware automatcally identfes the logger. Confgure the unit to start or stop recording immediately, at a predetermined tme and date, or only when an alarm conditon is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The on board data storage is non-volatle so data will not be lost in the event of a depleted batery.

The Track-It™ Pressure/Temperature Data Logger can be ordered in several pressure or vacuum ranges: 0-35, 0-150, 0-350, 0-550, 0- 2000 and 0-5800 PSI or 760-380 and 760-0 Torr. The logger is packaged in a rugged submersible 316L stainless steel housing and has a standard 1/4” NPT ftng. The replaceable internal lithium batery has up to a 5 year life.
