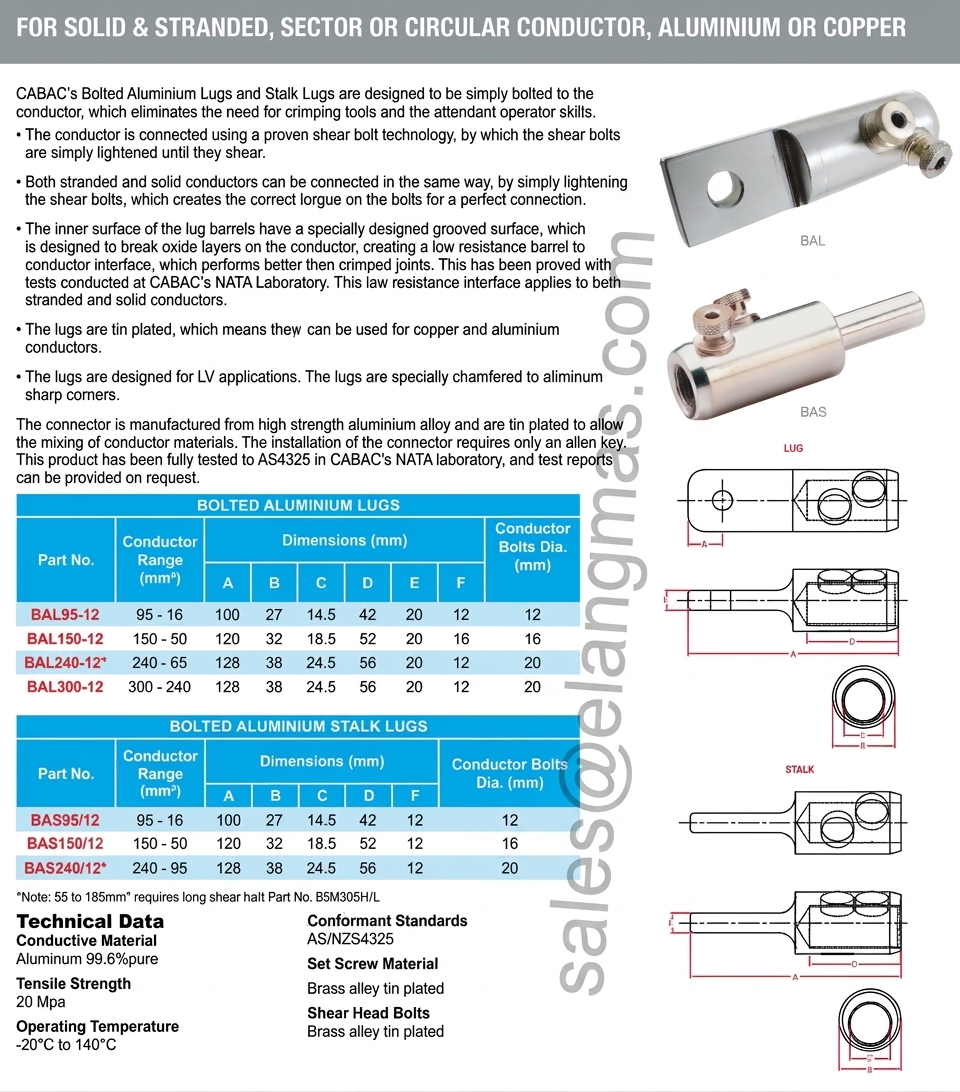

BAS240/12 Shear Bolt Lug

BAS240/12   Specifications

• Conductor Range: 95 mm² to 240 mm²
• Palm / Stud Hole Size: M12 (12 mm)
• Body Material: High-strength aluminium alloy, tin-plated to prevent bimetallic corrosion
• Bolt Material: Tin-plated brass/aluminium alloy shear head bolts
• Conductor Compatibility: Works with Aluminium (Al) and Copper (Cu) conductors (sector or circular, stranded or solid).
• Voltage Class: Low Voltage (LV) to Medium Voltage applications.
